- 48V / 4.8KWh
- >6,000 Cycles at 90% DOD
- 5 Years Warranty

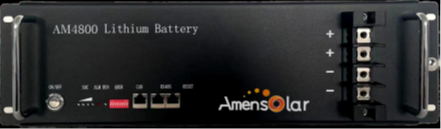

• AM4800 LifePo4 Battery

  Item AM4800
  Battery Type
  LifePo4
  Mount Type
  Rack Mounted
  Nominal Voltage (V)
  48
  Capacity(Ah)
  100
  Nominal Energy (KWh)
  4.8
  Operating Voltage(V)
  42~54.75
  Max Charge Current(A)
  100
  charging Current(A)
  80
  Max Discharge Current(A)
  100
  discharging current(A)
  80
  charging Temperature
  0℃~+55℃
  Discharging Temperature
  -20℃~+55℃
  Relative Humidity
  5% - 95%
  Dimension(L*W*H mm)
  482*568.5*138.5
  Weight(KG)
  46
  Communication
  CAN, RS485
  Enclosure Protection Rating
  IP21
  Cooling Type
  Natural Cooling
  Cycles Life
  ≥6000
  Recommend DOD
  90%
  Design Life
  20+ Years (25℃@77。F)
  Safety Standard
  CE/UN38.3
  Max. Pieces of Parallel
  16
